Quirk Cycles SUPERCHUBXC Race Hardtail Frameset
To use the bike builder, add one component from each category to the cart. From the cart page, you can then either complete the purchase or request a quote (request a quote if you are unsure about sizing, colours, etc or if you would like to use a cycle to work voucher!)
ALL BUILDS INCLUDE
Custom geometry, 3D printed stainless dropouts and seat cluster, Quirk Custom Select tubing, ULTRA-RAW or CANDY-RAW paint, Chris King headset, your choice of Wireless, Di2, or mechanical cable routing.
Max Tyre _ 29x2.4”
Fork Travel _ 100/120mm
BB Standard _ T47 92mm
Max Rotor _ 180mm
Native Spacing _ Boost
Seat Post _ 31.6mm
INTEGRATED CABLE ROUTING
Fully integrated cable routing protects cables from strikes, improves ease of cleaning, and looks so good!
We build the SUPERCHUB with boost spacing for its improved clearance and increased wheel/frame strength.

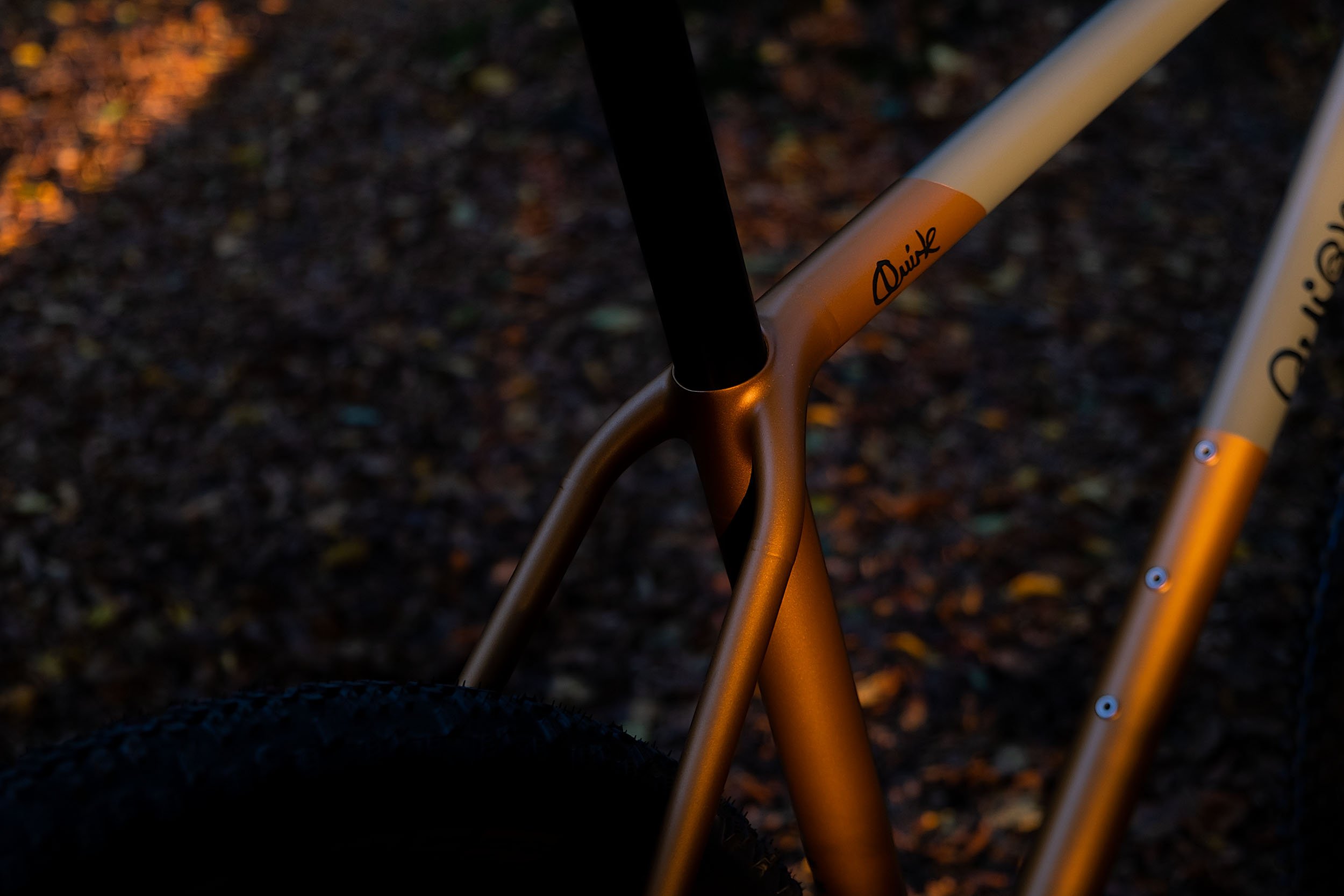

3D SEAT CLUSTER
Printed in stainless steel, the cluster seamlessly joins top tube to seat stays, increasing tyre clearance and frame compliance with thin wall straight stays.
INTEGRATED SEAT CLAMP
Recessed inside the top tube, our integrated seat clamp invisibly sits within our 3D printed seat cluster.

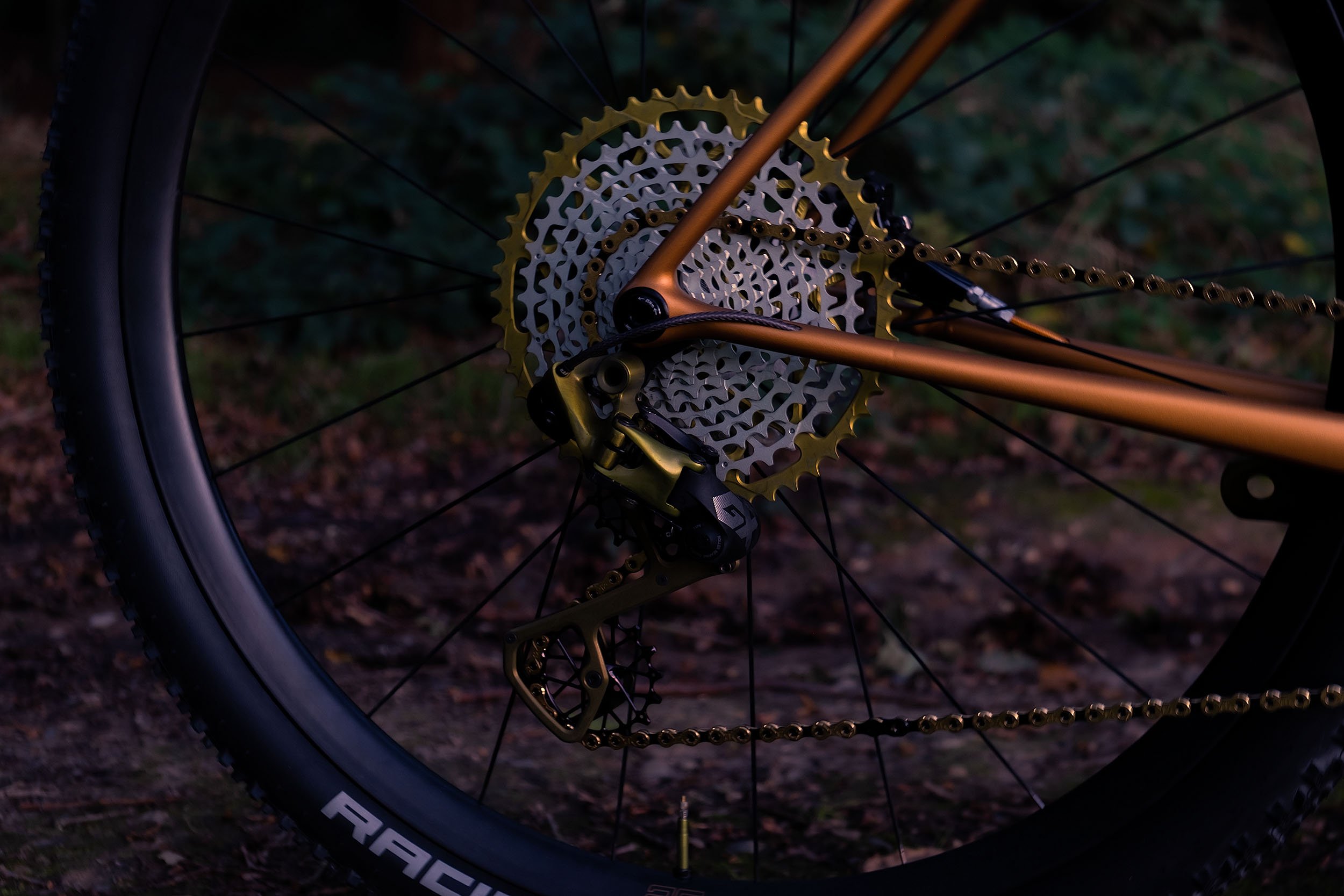

In-house designed 3D stainless dropouts improves compliance, increases strength and reduces weight.
At 1.9kg for a large frame, sub 10kg full builds are easily within reach using mid-high end parts.
54ID OVERSIZED HEADTUBE
Unique to the SUPERCHUB, our in-house designed 54ID headtube improves strength and reduces weight with recessed 1.5” upper and lower bearings.
Clearance for 29x2.4” tyres increases float and traction in all conditions.
XC Race Geometry
We designed our XC Race geometry to take the best features of modern MTB design and tune it to meet the demands fast XC events. We slightly slackened the head angle for better rolling and stability on rough terrain, and raised the BB offers for spirited handling. The longer rear end make the bike climb like a goat without sacrificing cornering ability.
Standard with every frame
Quirk 3D printed dropouts
Integrated hidden bolt seat clamp
Integrated cable routing
Oversized 54ID headtube
Custom Quirk headbadge
Front and rear thru-axle skewers
SRAM XX1/X01/GX EAGLE AXS | SRAM XX1/X01/GX EAGLE | Shimano XT 1x12 | Shimano SLX 1x12
ENVE M525 | Zipp 3ZERO MOTO |ENVE Foundation AM30 | Hunt XC Wide
Fabric ALM | Scoop | Line saddle with carbon or steel rail
ENVE M5 |Ritchey WCS | PRO Tharsis |Ritchey WCS Alloy
